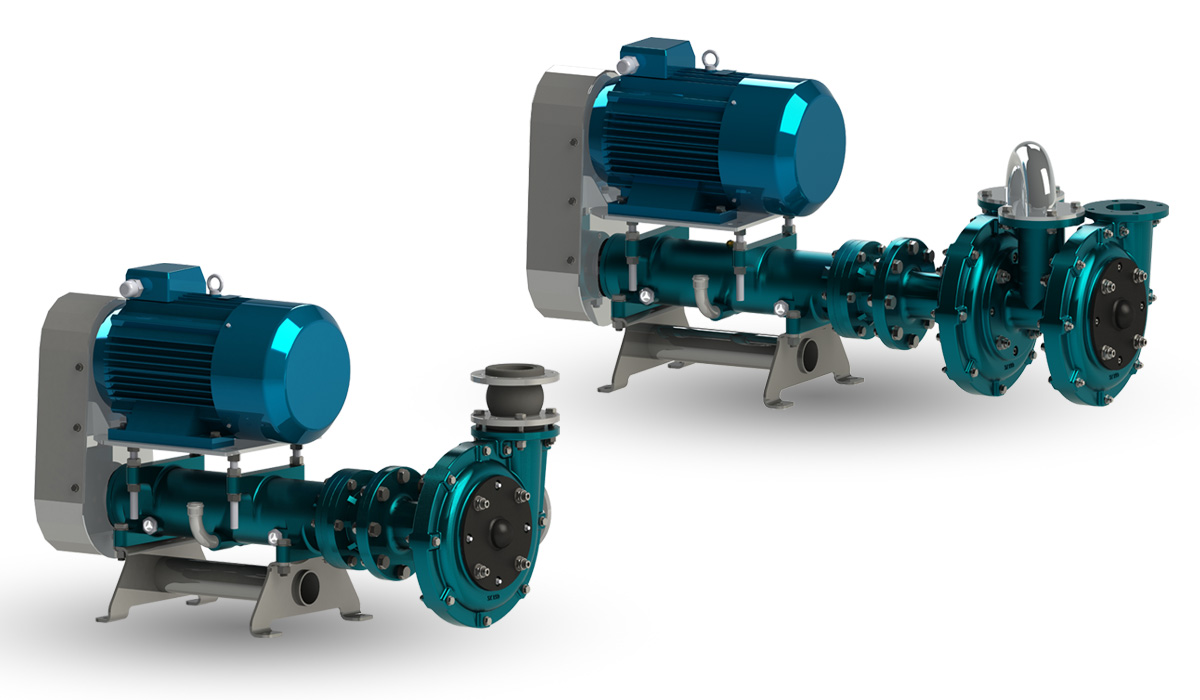

The centrifugal pumps FCK 100 are designed and built to pump dense and abrasive liquids in the industrial and mining fields and can be supplied in single-body MC or double-body DC versions for higher pressure performance.
The pump body is made of EN-GJL250 cast iron while the open type impeller is made of cast iron hardened EN-GH300 with a hardness of about 500 HB and works in contact with interchangeable rubber shields coated in NBR or POLYURETHANE.
The suction of the liquid to be pumped is not frontal like standard pumps but through an intermediate lantern placed between the impeller and the mechanical seals that avoids pressure on the seals themselves and prolongs their life.
The two opposing mechanical seals are of the WIDIA/WIDIA type housed in a water-cooled sealed chamber.
The bearings, generously oversized, are oil-lubricated while the shaft is equipped with interchangeable AISI 304 bushings that protect parts subject to wear.
The transmission to the shaft takes place with pulleys and V-belts that make the connection elastic and allow you to choose the number of revolutions suitable for your needs using commercial electric motors with the possibility of inverter control. For more details contact our technical department.
